FISCHERSCOPE® X-RAY PCB Series

FISCHERSCOPE® X-RAY PCB Series

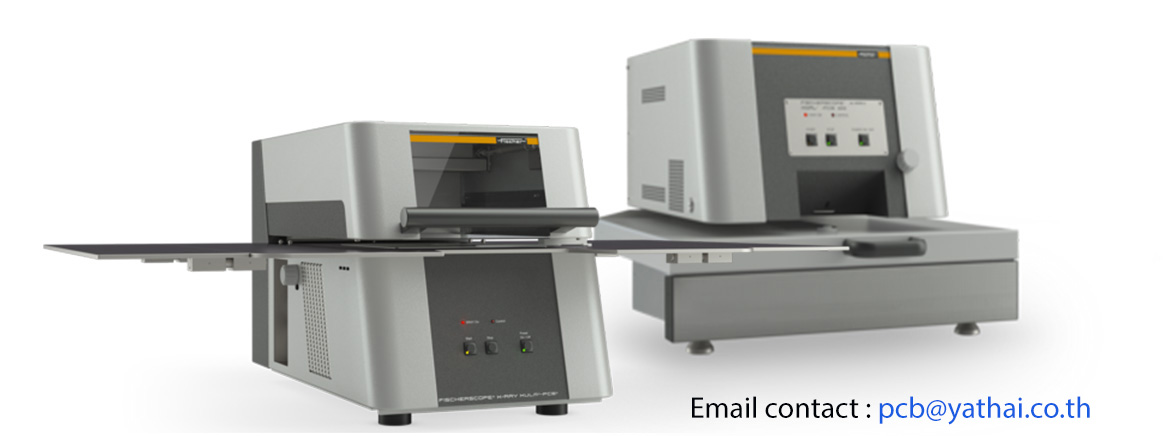

Flaxshie PCBs The purpose-built PCB Series encompasses robust and cost-effective X-RAY measurement systems with propor- tional counter tubes suited for all coatings commonly used in the manufacture of PCBs. Even complex multi- coating systems can be measured precisely. All the instruments in this series can handle large boards easily and safely; they are further equipped with appropri ate support plates or XY-stages with large travel paths, allowing for measurements even at the edges of large rigid or flexible PCBs.

Typical featuresSeries

Micro-focus X-ray tube with W-anode and beryllium window
Proportional counter tube as X-ray detector
Fixed distance between measuring head and support plate
Simple and quick positioning
Large support plates, choice between manual or motor-driven XY-stage
Video camera for optical observation of the measurement location along the axis of the pri mary X-ray beam. Crosshairs with calibrated scale (ruler) and display of the measurement spot

Typical Fields of Application

Quality control of coatings on large and/or Rexible PCBs up to 24 x 21 in. With a programmable measuring stage, effective. (-610 x 530 mm) in size
process control even on large panels and multiple measurement locations, using the automatic sam- ple recognition function in the WinFTM® Software
